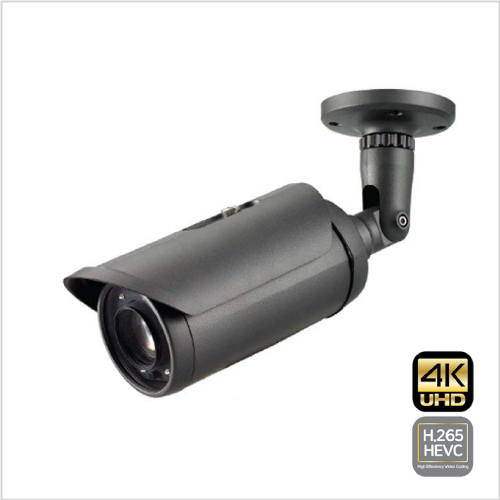

REX-IVC502
제품 주요 특징
| 모델명 | REX-IVC502 | |
| 카메라 | Motion detection | 8 Regions on 23x15 cells |
| Privacy masking | 8 Regions | |
| Video analytics | Motion detection, object detection, intrusion detection, missing object detection, abandoned object detection, line counting, ANPR, vehicle speed detection, directional detection, defocus detection, object blurring | |
| IR LED | 8 pieces, Max 80m | |
| Burn-in OSD | Camera title, direction, user-defined Multi-ligual; (english, korean, french, german, spanish, italian, russian, japanese, swedish, portuguese, dutch, hungarian, finnish, special symbols) | |
| 이미지 | Sensor | 1/1.8" CMOS Image Sensor |
| Zoom | Optical 18x | |
| Focal length | F=6.8~122.4mm | |
| Angle of view | Horizontal:58.4º / wide 3.2º / tele, vertical:35º / wide ~1.9º(tele) | |
| Maximum aperture ratio | F1.61~F4.13 | |
| Focus control | Oneshot AF | |
| Lens type | DC auto iris | |
| Min illumination | Color:0.01Lux(1/30sec, 30IRE), BW:0Lux(IR ON) | |
| Electronic shutter speed | 1/1~1/100,000 sec | |
| Day&night | Day / Night / Auto | |
| Back light compensation | BLC / HLC / WDR | |
| White balance | Auto tracing white / Auto white / Manual | |
| Gain control | Auto | |
| Noise reduction | Auto / Manual | |
| Image stabilization | Support | |
| Defog | Support | |
| Image rotation | Horizontal(Mirror), Vertical(Flip) | |
| 오디오 | Compression | G.711 u-law |
| Sampling rate | G.711:8KHz | |
| Bitrate | G.711:64kbps | |
| Streaming | Full-duplex | |
| Input&output | 1xLine-In(mono), 1xLine-Out(mono) | |
| 비디오 | Compression | H.264/H.265/MJPEG |
| Frame rate | Max 30fps@3840x2160 | |
| Bitrate control | H.264/H.265:CBR/VBR/Hybrid, MJPEG:VBR | |
| Resolutions | 3840x2160~352x240 | |
| Streaming | Quad Streaming:Primary:H.264/H.265, Secondaryx3:H.264/H.265/MJPEG | |
| 네트워크 | Interface | Ethernet 10/100/1000 base-T(RJ-45) |
| Protocol | IPv4/v6, TCP, UDP, IGMP(Multicast), ICMP, DHCP, HTTP, HTTPS, RTP, RTSP, FTP, SNMP, UPnP, WS-Discovery, Zero Configuration, NTP, DDNS, RTMP | |
| Security | Basic/Digest authentication, HTTPS, IP address filtering, User access log, TTA certification | |
| Application programming interface | ONVIF, PSIA, MPEG-TS | |
| 이벤트/알람 | Event sources | Video analytics, Audio detection, Client disconnection, Sensor input, User-defined event |
| Event actions | E-mail notification. OSD alert, FTP upload, PTZ Preset, Alarm control, Recording, HTTP action | |
| 일반사항 | Power supply | DC 12V/3.0A PoE:802.3at |
| Power consumption | DC 12V/PoE:Max 30W | |
| Operating condition | -20℃~70℃/Less than 90%RH | |
| Storage condition | -50℃~60℃/Less than 95%RH | |
| Certifications | IP67, IK10, KC | |
| External devices | 1 x Sensor-In(dry contact, NO/NC), 1 x alarm-Out(dry contract, NO) | |
| Edge storage | Micro SD/SDHC/SDXC(Max 512GB) | |
| Color/Material | Body:Gray/Aluminum Head:Gray/Aluminum | |
| RAL code | Gray:TBD | |
| Dimension | Ø108x391.5(L)mm | |
| Weight | 1.750kg | |
| 펌웨어 / 해쉬 정보 | 모델명 : RW-SM7200 | |
